MJ-1-DP 4

MJ-1-DP 4" Setback Manual Jack Plate for Outboard Motors Up to 35HP - Adjustable Engine Mounting Bracket with Wooden Block - Increase Distance Between Motor & Transom for Better Performance in Shallow Water & Tight Spaces

$59.39

$107.99

Safe 45%

$59.39

$107.99

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

24 people viewing this product right now!

SKU: 26905715

Guranteed safe checkout

Description

MJ-1-DP Jack Plate 4'' Setback Small Engine Jack Plate w/ Wooden Mounting Block MJ-1-DP Jack Plate 4'' Setback Small Engine Jack Plate for Outboard Motors Up to 35HP Designed for clamp-on outboard motors up to 35 HP. Suitable for skiffs, aluminum boats, and inflatables.WOODEN BLOCK INCLUDED. Wooden Block Model # WOOD0002. Jack plate comes with pre-cut and pre-grooved wood block for a perfect fit. Ensure more firm and reliable installation of the motor.The jack plate extends 4" off transom. Engine mounting surface is 11-1/2" x 10", 4" Setback and 3" Vertical. Width of transom mounting flanges is 17". Max weight capacity: 150 lbs. The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. For Outboard Motors Up to 35HP 4'' Setback Jack Plate, Manual Add Distance Between Engine and Transom Extends 4" off transom. Small boat that made for short shaft outboard engine equipped with a long shaft engine which results in not optimal performance and handling. This jack plate is designed to firmly attach to the transom and provides a higher mounting position for the engine.Improves performance and handling of smaller or lighter boats. Allows long shaft motors mount to shorter shaft transom boats.Engine mounting surface 11-1/2" x 10", 3" Vertical. Width 17", Max weight capacity: 150 lbs. How To Install Jack Plate for Outboard Motors? Step 1 Place the Jack Plate in the center of transom. Clamp Jack Plate in place and drill six holes. Using six bolts (minimun size of 3/8”) mount jack plate to transom. Use washers, lock-nuts and protective sealant around bolts. Tighten all bolts then remove clamps. Step 2 Mount engine to Jack Plate. Make sure that the wooden block is inside Jack Plate. Tighten engine mounts securely.Drill two holes in the bottom of engine bracket and bolt bracket to jack plate with bolts, washers and locknuts. Be sure to bolt through wooden block.

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

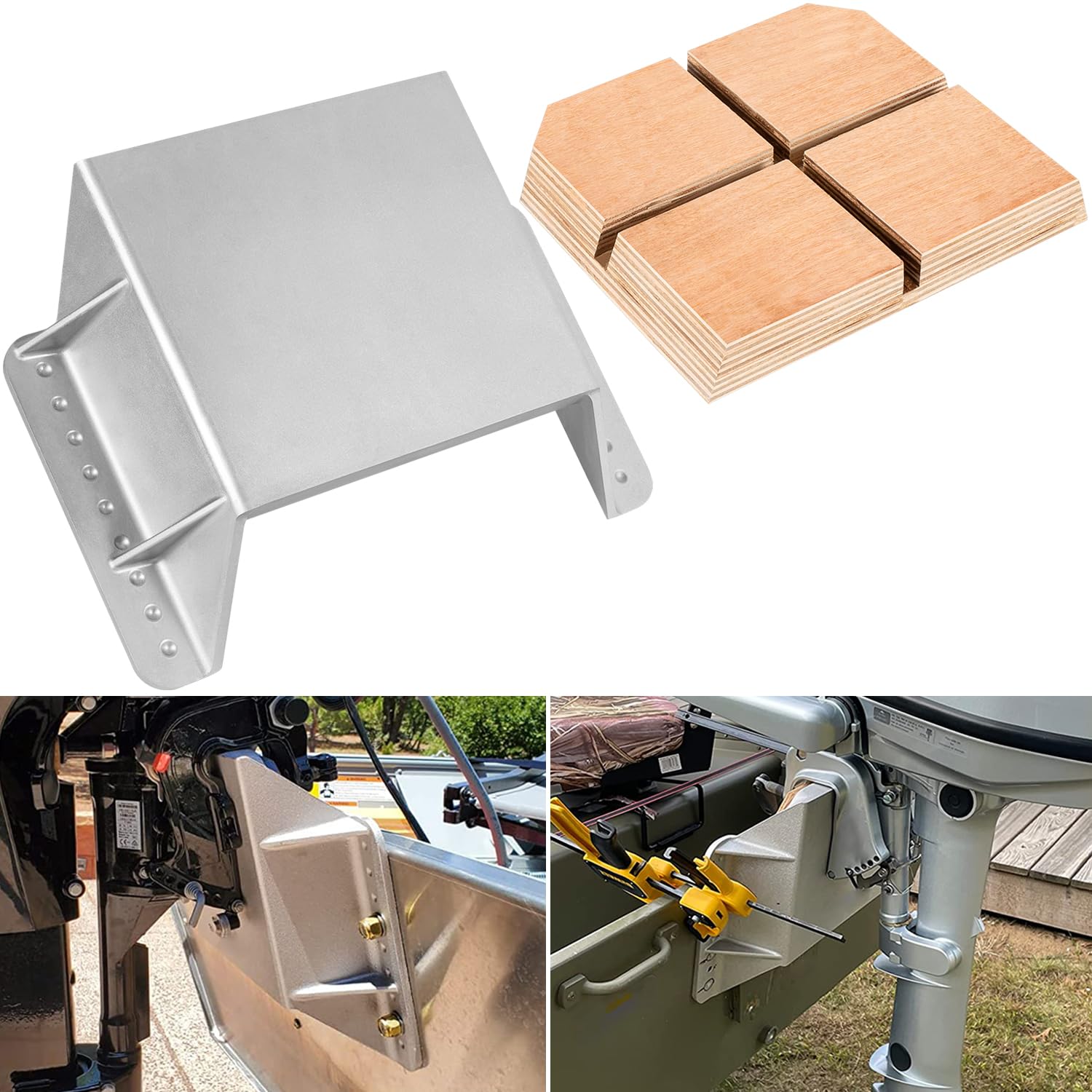

APPLICATION -- Designed for clamp-on mount outboard motors up to 35 HP. Suitable for skiffs, aluminum boats, and inflatables. This cast aluminum offset type jack plate allows mounting of long shaft motors to shorter shaft transom boats.

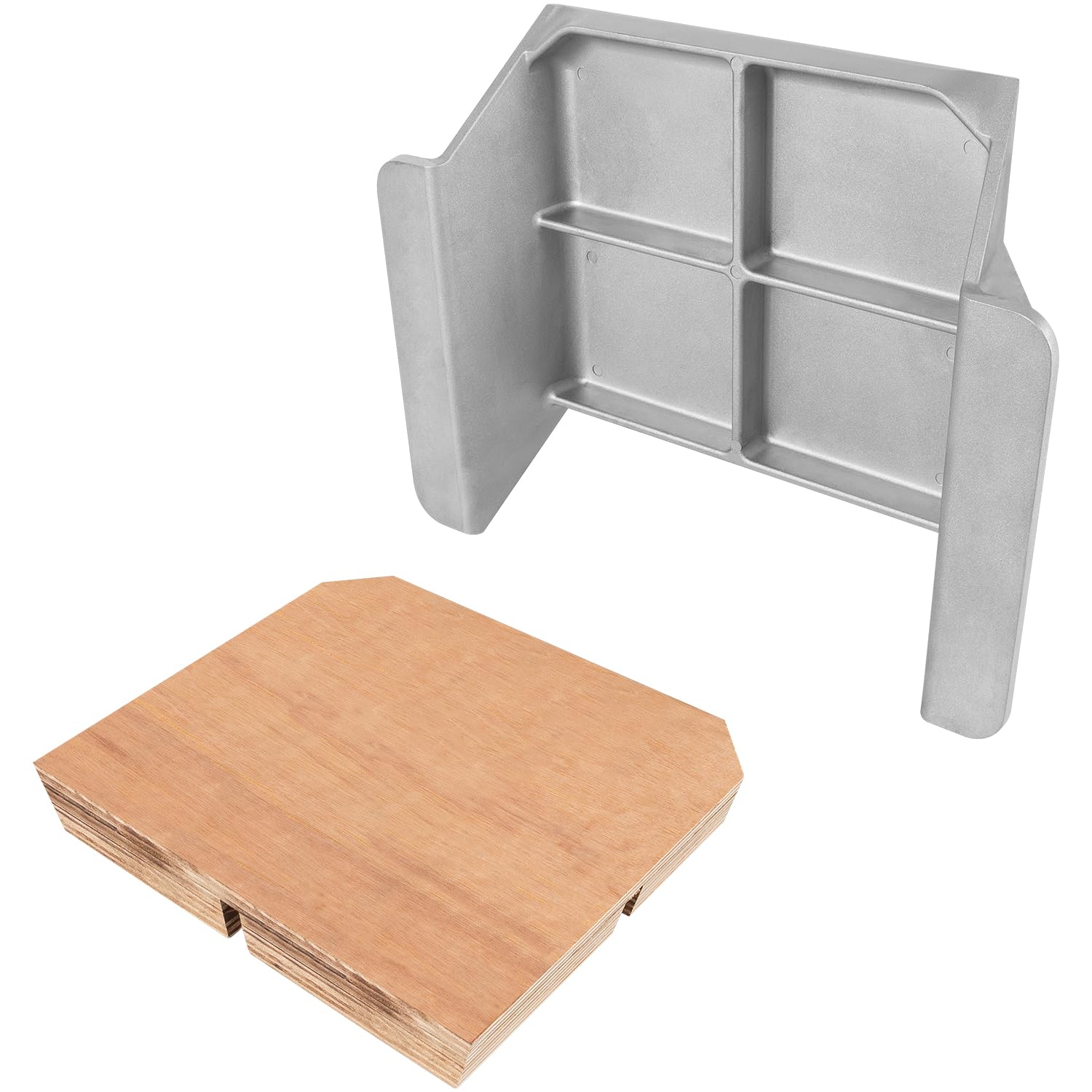

WOODEN BLOCK INCLUDED -- Same as MJ-1-DP Jack Plate, Wooden Block Model # WOOD0002. Jack plate comes with pre-cut and pre-grooved wood block for a perfect fit. Ensure more firm and reliable installation of the motor.

FUNCTION -- Extends 4" off transom. Small boat that made for short shaft outboard engine equipped with a long shaft engine which results in not optimal performance and handling. This jack plate is designed to firmly attach to the transom and provides a higher mounting position for the engine.

BENEFITS -- Improves performance and handling of smaller or lighter boats. Allows long shaft motors mount to shorter shaft transom boats. Making the boat drive faster.

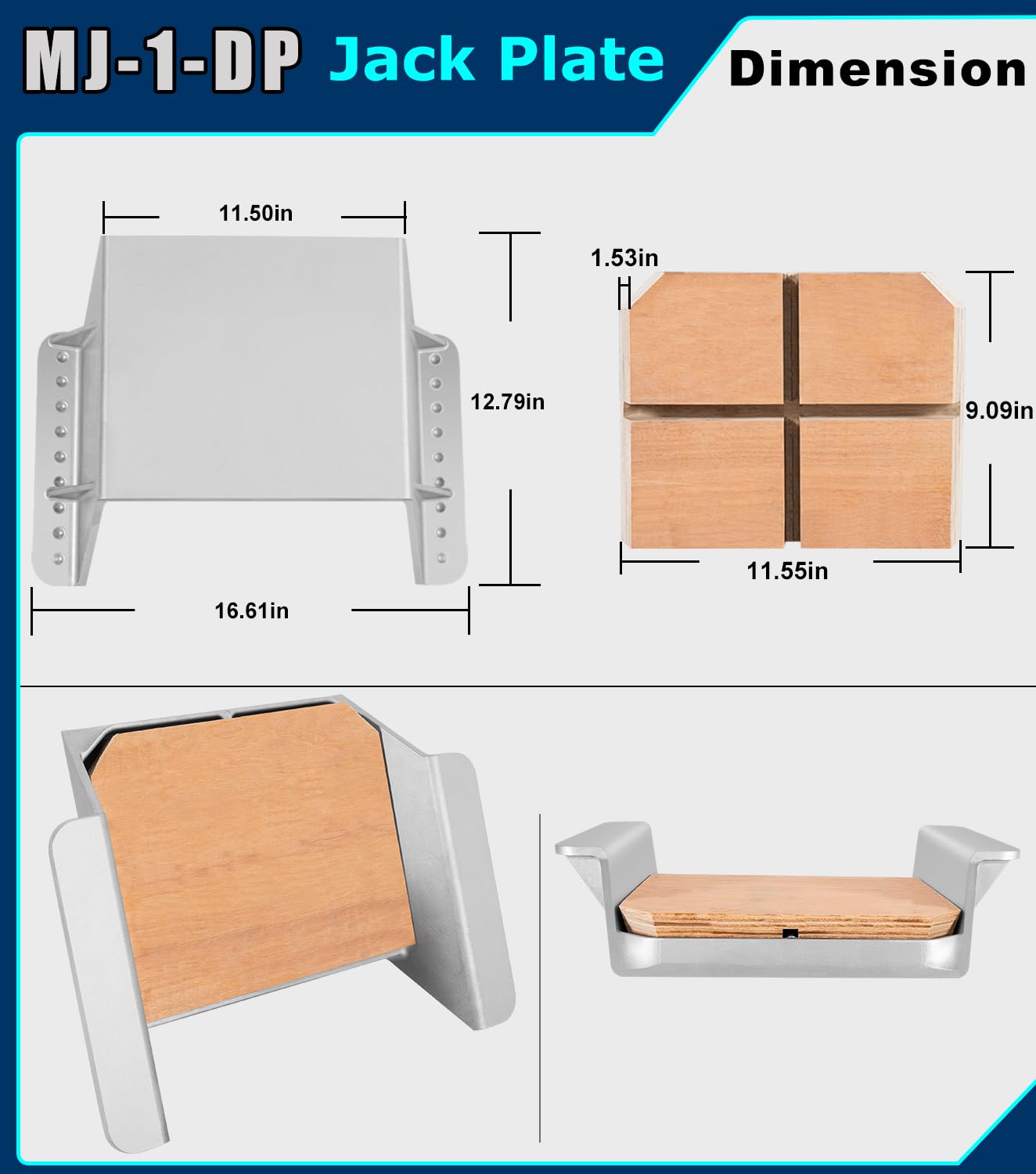

4" SETBACK -- The jack plate extends 4" off transom. Engine mounting surface is 11-1/2" wide x 10" high, and features 4" Setback and 3" Vertical Offset. The overall width of transom mounting flanges is 17". Max weight capacity 150 lbs. Max Horsepower 35 HP.

EASY INSTALLATION -- Position of the holes on the jack plates are consistent and accurately marked for easy installation. With a simple setup and drill process, you will have your jack plate installed in no time.

TOP QUALITY -- The jack plate bracket is well manufactured from Cast Aluminum, and the Wooden Mounting Block is quality Marine Grade Transom Block. Parts are built with strict quality control standards and for long lasting usage.

SATISFACTION GUARANTEE -- If you are not satisfied with Camoo products, simply return it for a full-refund in 30 days. Guarantee with 12 months warranty. No worry about buying!

Reviews

*****

Verified Buyer

Find the center of the transom. Use sturdy C-clamps to hold the mount on the transom, centered and at the correct height (cavitation plate of outboard in line with the bottom of the boat). Pick which divots that will go through the transom board after drilling and mark them with a pen or pencil. Make a mark around the mount after you're sure it's centered and at the right height. Remove the mount. Drill the holes with the correct size of your bolts (stainless steel hardware). Use a sharp drill and go slowly so you don't drift the hole (I used a drill press, aligned and clamped for each hole. After the holes are drilled, re-clamp the mount on the boat where you marked it and then drill the holes through the boat. I used silicone seal on the bolts, holes and fender washers with a lock nut on the inside, tightened well. I cut the excess threads off the bolts so they wouldn't snag things, like flesh and fuel lines.
