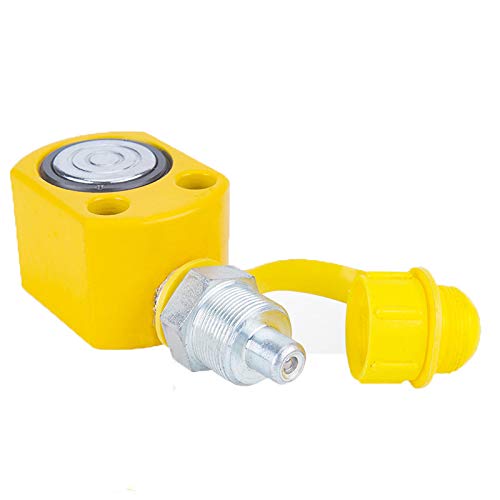

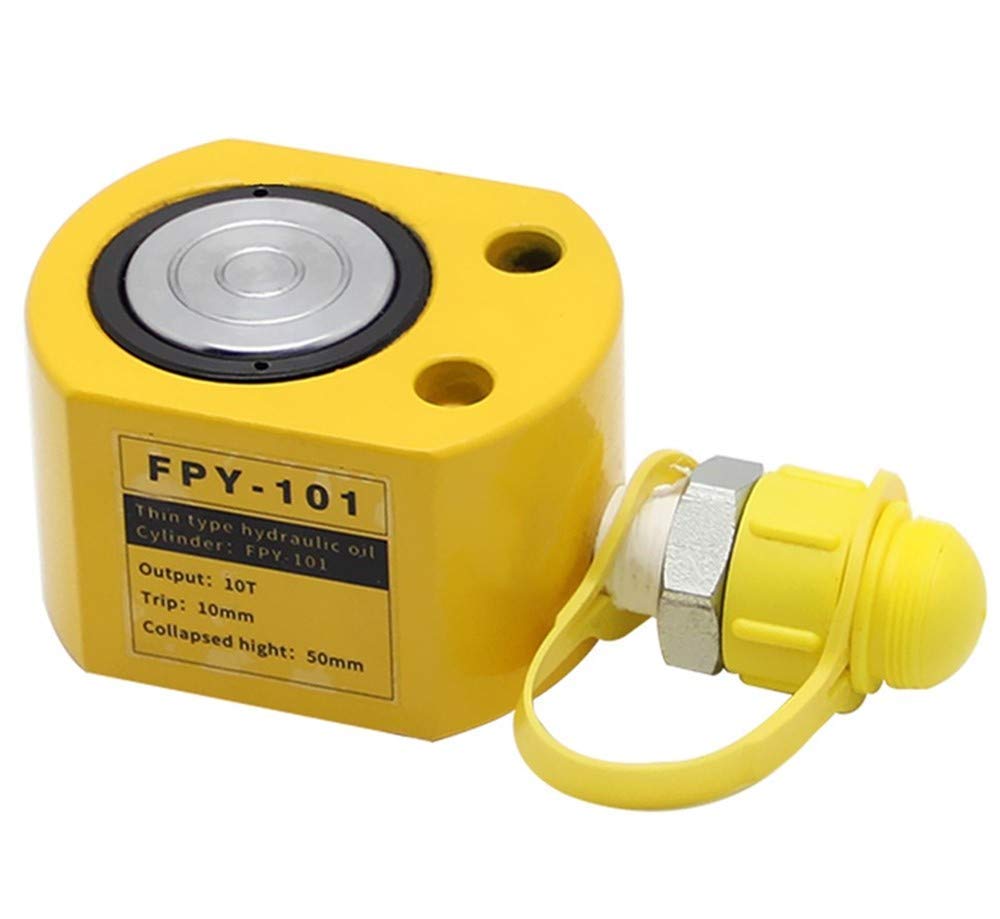

Features: Spindle: The surface of the spindle is treated with hard chrome, which is non-slip and wear-resistant and prolong the use time. Smooth surface: The hydraulic jack is cylindrical, and the surface is painted with a smooth surface, rust and corrosion resistant. Compact design: The hydraulic jack is compact and exquisite, low in height, small in size, and powerful. Multi-angle use: The hydraulic jack is suitable for narrow and remote working occasions. It can work vertically, horizontally and upside down. It is convenient and fast to use. Parameter: Model: FPY-101 Tonnage:10T Stroke: 10mm Height : 50mm Forced area:15.89c㎡ Piston diameter: 38mm Outer diameter: 83*66mm Weight: 1.8Kg Note: ⑴When using hydraulic jack, the bottom should be flat and firm. Use of hydraulic jacks on sandy, clay or loose surfaces can cause damage. ⑵When lifting, it needs to be stable and lightly loaded. Check whether there is any abnormality. If there is no abnormality, continue to lift. ⑶Not overloaded or super high.When a red line appears on the sleeve, indicating that the rated height has been reached, the lifting should be stopped. Hydraulic jack should be used with hydraulic pump. When selecting hydraulic pump, pay attention to: ① The hydraulic jack adopts thread metric ZG3 / 8 "quick connector . ② Whether the oil storage capacity of hydraulic pump can meet the oil consumption of Jack. ③ If the work efficiency requirements are high, the electric hydraulic pump can be selected.
