20T Low Profile Hydraulic Ram Cylinder Jack - 0.51" Stroke Single-Action Lifting Cylinder - FPY-20 Mini Portable Porta Power Ram for Machinery Repair, Automotive Lifting, and Industrial Applications
$43.97
$79.95
Safe 45%
20T Low Profile Hydraulic Ram Cylinder Jack - 0.51 20T Low Profile Hydraulic Ram Cylinder Jack - 0.51 20T Low Profile Hydraulic Ram Cylinder Jack - 0.51 20T Low Profile Hydraulic Ram Cylinder Jack - 0.51 20T Low Profile Hydraulic Ram Cylinder Jack - 0.51 20T Low Profile Hydraulic Ram Cylinder Jack - 0.51 20T Low Profile Hydraulic Ram Cylinder Jack - 0.51
20T Low Profile Hydraulic Ram Cylinder Jack - 0.51
20T Low Profile Hydraulic Ram Cylinder Jack - 0.51
20T Low Profile Hydraulic Ram Cylinder Jack - 0.51
20T Low Profile Hydraulic Ram Cylinder Jack - 0.51
20T Low Profile Hydraulic Ram Cylinder Jack - 0.51
20T Low Profile Hydraulic Ram Cylinder Jack - 0.51
20T Low Profile Hydraulic Ram Cylinder Jack - 0.51
20T Low Profile Hydraulic Ram Cylinder Jack - 0.51" Stroke Single-Action Lifting Cylinder - FPY-20 Mini Portable Porta Power Ram for Machinery Repair, Automotive Lifting, and Industrial Applications
$43.97
$79.95
45% Off
Size:
30T
30T
10T
50T
20T
Quantity:
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
26 people viewing this product right now!
SKU: 93172837
Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay
shop
Description
Package Include: 1 x 20T Hydraulic Cylinder Jack 1 x Seal Ring Capacity: 20T/44092LBS Item Dimension (L x W x H): 5.67 x 3.31 x 2.56 inches Item Weight: 7.26 pounds Package Dimension: 6.3 x 3.5 x 3 inch / 16 x 9 x 7.3 cm Package Weight: 3.3 kg / 7.3 lbs 20T 0.51" Stroke Low Profile Stroke Hydraulic Ram Cylinder Jack 20T 0.51" lt is easy to carry there are two holes on the surface of the oil vat for stability. Plunger eiper reduces contamihation.Exteding cylinder life. Light weingt,low profile design for use in confined spaces. Baked enamel finish for increased corrosion resitance. Body Height: 62mm Outside Diameter: 99x84mm(3.9x3.3inch) Inner Diameter:64mm(2.52inch) Plunger Diameter: 52mm(2.05inch) Effective area:32.1c㎡ Total Height: 75mm(2.95inch) EASY LIFTING The maximum capacity of the hydraulic jack cylinder can reach 20T/44092LBS. Trip is up to 13mm/0.51inch. Not getting stuck while lifting. PRODUCT DETAIL This hydraulic cylinder jack is made of heavy-duty metal construction, which is noted for it's durable and long-lasting use. ZG3/8 CONNECTOR The joint of this hydraulic cylinder jack adopts threaded ZG3/8" joint and has a compact structure. 5T Low Profile Stroke Hydraulic Jack 10T Low Profile Stroke Hydraulic Jack 20T Low Profile Stroke Hydraulic Jack 30T Low Profile Stroke Hydraulic Jack 50T Low Profile Stroke Hydraulic Jack Buying Options Add to Cart Add to Cart Add to Cart Add to Cart Price — no data $68.88$68.88 $79.95$79.95 $128.95$128.95 $173.38$173.38 Capacity: 5T/11023LBS 10T/22046LBS 20T/44092LBS 30T/66138LBS 50T/110231LBS Storke: 7mm/0.28inch 11mm/0.43inch 13mm/0.51inch 14mm/0.55inch 18mm/0.7inch Oil Storage: 6.7cm³ 16.6cm³ 43.7cm³ 66.7cm³ 135.5cm³ Effective area: 9.6cm³ 15.1cm³ 32.1c㎡ 47.7c㎡ 32.1c㎡ Body Height: 41mm/1.61inch 53mm/2.09inch 62mm/2.44inch 66mm/2.6inch 77mm/3.03inch Total Height: 48mm/1.89inch 64mm/2.52inch 75mm/2.95inch 80mm/3.15inch 95mm/3.74inch
More
Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

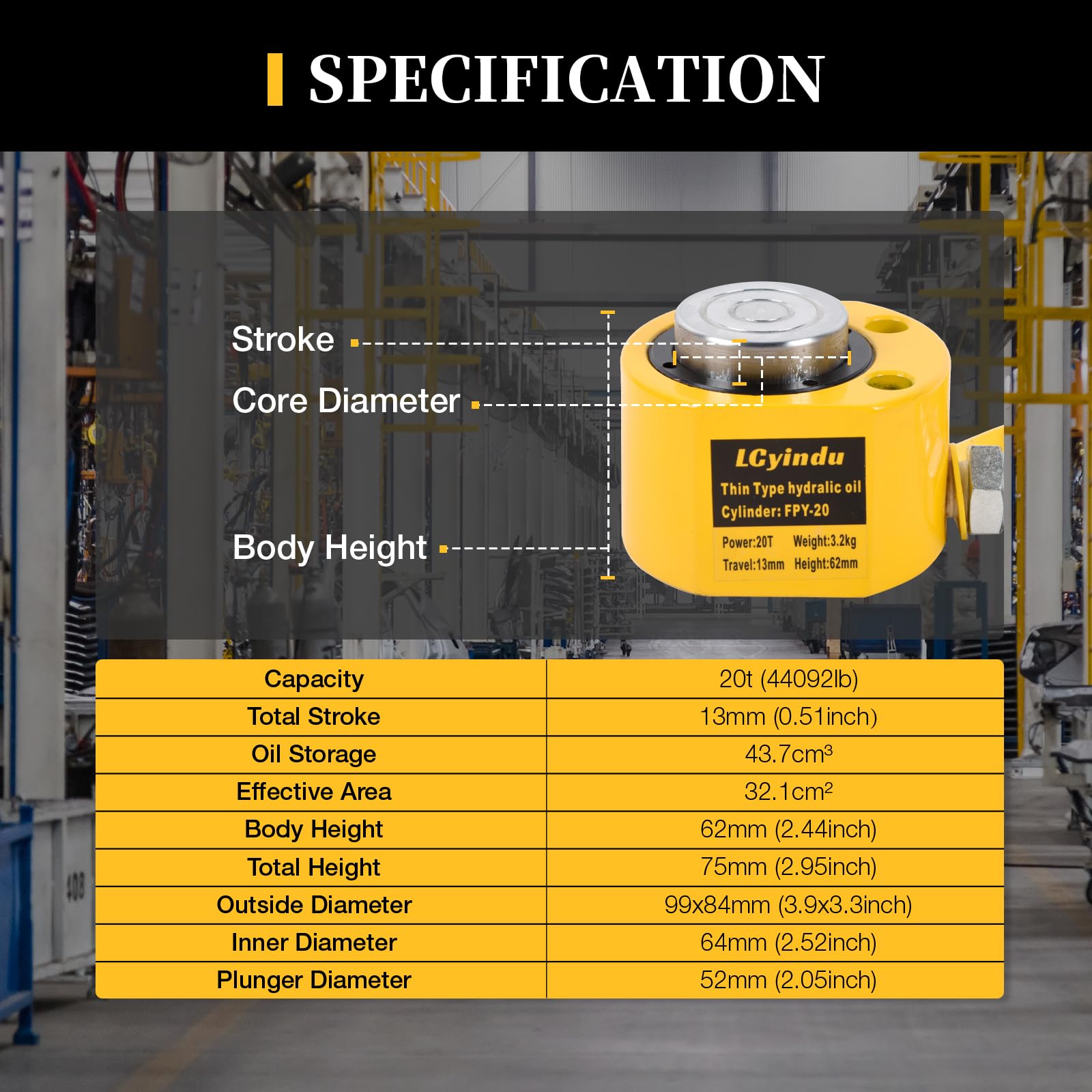

?【??? ??????? ?????? & ????????】[Model] FPY-20; [Capacity]20t (44092LBS); [Total Stroke] 13mm (0.51inch); [Outside Diameter] 99x84mm(3.9x3.3inch); [Inner Diameter]64mm(2.52inch);[Oil Storage] 43.7cm³;[Effective Area]32.1cm²;[Body Height]62mm(2.44inch);[Total Height]75mm(2.95inch);[Plunger Diameter]52mm(2.05inch);

?【??????? ?????????????】Easy to use, the hydraulic ram cylinder jack can retract automatically after releasing the oil return value of the hydraulic pump without any blockages.

?【???? ???? ????】The hydraulic jack should be used with hydraulic pumps and suitable for single-action ones.Equipped with various accessories, it has multiple functions such as lifting, jacking, shoveling and splitting, and can be quickly installed by using quick connectors.

?【?????? ???????】This hydraulic cylinder jack has a smooth round, made of heavy-duty metal construction,the product surface is painted to prevent scratches and corrosion.

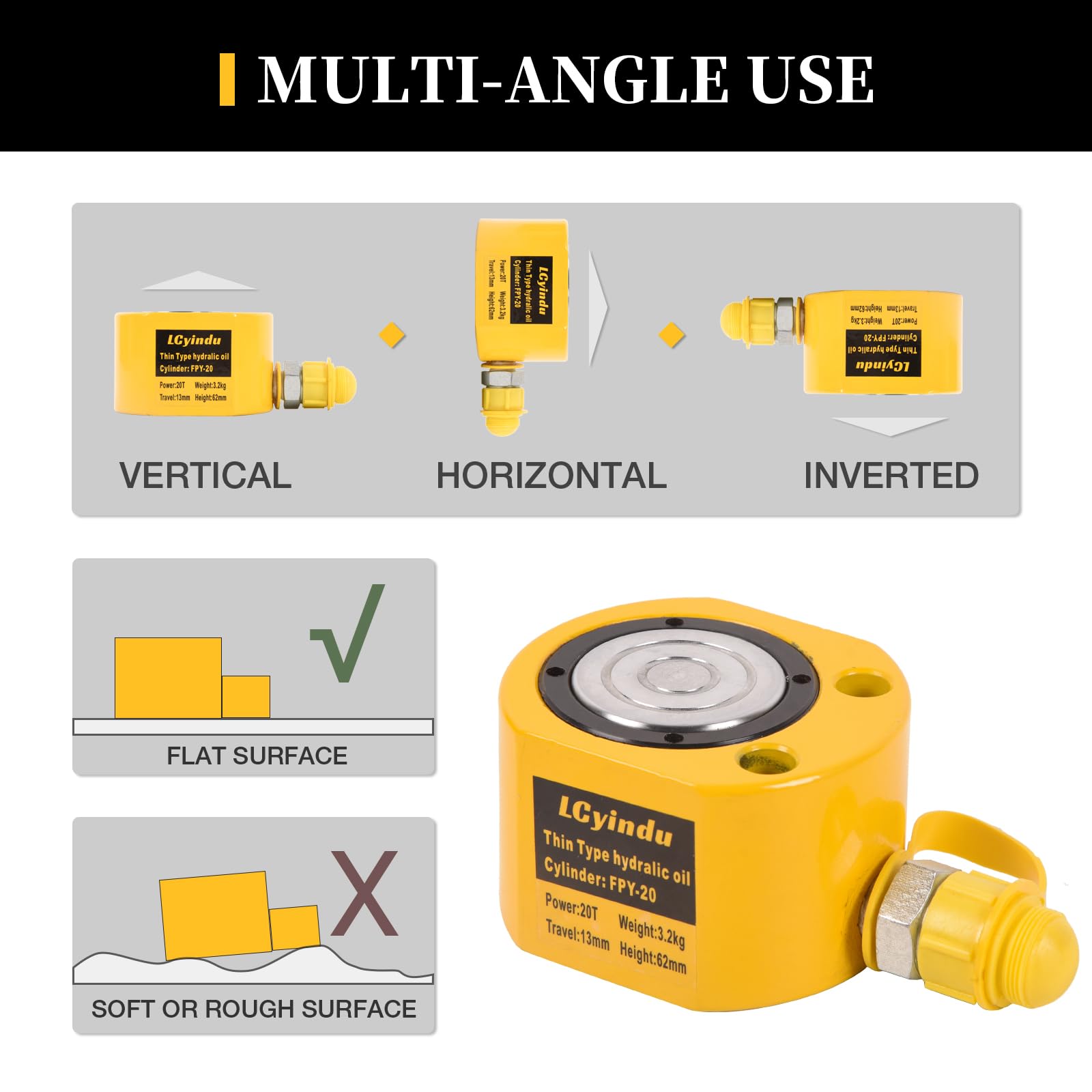

?【???? ????????????】Our Hydraulic Ram Cylinder Jack is used in power, chemical, steel, bridges, machinery and other industries. Suitable for vertical, horizontal and inverted directions, but cannot be tilted use. In order to operate correctly, all cylinders need to be connected to a solid flat lifting surface rather than soft or rough surface. Home car type is not recommended.
